A travel map can contain accurate coordinates and still be hard to use. A dashed line may mean an optional detour in one section and a transport journey in another. A green symbol may identify a park, a meeting point or a recommended café without explanation. Readers then have to guess the relationship between the picture and the itinerary. A useful legend removes that guessing.
This guide proposes a practical workflow for travel publishers, agencies and affiliates. It concerns the meaning and testing of a map, not a replacement for current official route information. The examples are suggested design decisions that must be matched to verified geography and the map’s actual purpose before publication.
Write the task before the legend
State what the reader should be able to do with the map. The task might be choosing a short garden walk, finding a tour meeting point or understanding the transfer between two attractions. These are different maps. A legend designed for one should not be overloaded with every symbol that might be useful across an entire destination.
The National Park Service’s wayside-map guidance offers a useful principle: site-specific maps should have a clear focus and include the information needed for the visitor’s movement. A portable travel map has different use conditions from a fixed sign, but it still benefits from an explicit purpose and a defined starting context.
Write a one-sentence acceptance task, such as identify the main walking route and recognise the optional extension. Use that sentence to decide what belongs in the legend. A feature that does not help the task may remain in the background or be omitted, rather than receiving another symbol readers must learn.
Separate route, stops and context
Create distinct categories for the movement the article recommends, the places where it suggests stopping and the features that provide orientation. A route line should not look like a district boundary, and a numbered article stop should not be confused with a public transport stop. These distinctions need to be visible before the reader opens the legend.
Write the categories in plain words. Main walk, optional extension, article stop and public transport stop are clearer than unexplained internal terms. If a map includes a transfer by tram or bus, identify that movement separately from the walking route. The line can show a relationship without implying that every section is walked or follows a verified footpath.
Keep contextual places subordinate. A nearby museum may help orientation without being part of the recommended visit. Use a different visual treatment and a clear label rather than assigning it the same numbered stop marker. The reader should know which places the article has actually planned and which merely help explain the area.
Use a small consistent symbol set
Choose symbols that remain distinguishable at the actual map size. A circle, square and simple landmark symbol can be easier to tell apart than several elaborate icons with similar outlines. Pair the symbol with a clear label in the legend. Avoid assuming that a familiar pictogram means exactly the same thing to every reader.
For a proposed design, the main route could use a solid line and the optional extension a dashed line, with both named in the legend. Numbered circles could refer to article stops, while separately labelled squares indicate public transport stops. These are examples of a consistent system, not universal conventions that readers should be expected to know without explanation.
Do not reuse a symbol for a new meaning elsewhere in the same map. If the design needs more categories than can be explained clearly, reconsider the scope or split the content. A crowded legend often reveals that the map is trying to answer several different planning questions at once.
Make colour helpful rather than essential
Use colour to reinforce the categories, while retaining another way to distinguish them. W3C’s guidance on use of colour explains that information should not rely on colour alone. A route can differ through line pattern and label as well as hue; a point category can differ through shape and text.
Check that the legend still communicates when colour differences are reduced or absent. A printed itinerary may be copied in monochrome, a phone may be viewed in bright light and readers perceive colours differently. The main question is whether someone can match a feature to its meaning without needing to identify one particular shade accurately.
Keep the colour palette tied to meaning. If green denotes public garden space, avoid using the same green route line without another clear distinction. Decorative colours should not compete with the practical route. The Scottish Government’s map-colour guidance is a useful additional reference for matching palette type to the information being shown.
Choose labels that match the visit
Use verified names and keep them consistent with the article and relevant signs. A shortened map label may be necessary, but it should remain recognisable. Retain a full name in the legend or text when an abbreviation could confuse the place with another attraction, entrance or transport stop.
Check the relationship between a marker and its label. A symbol placed at the centre of a large site may not identify the entrance a visitor needs. If the map’s task is arrival, verify the entrance and describe that purpose. A legend saying attraction cannot compensate for an imprecise marker used as a meeting-point instruction.
Translate labels with the map context available. A short word may describe a building, a district or a function. Give the reviewer the feature identity and intended meaning, then inspect the resulting map for overlap and truncation. A correct translation that becomes unreadable at the delivered size still needs a layout decision.
Work through a real travel example

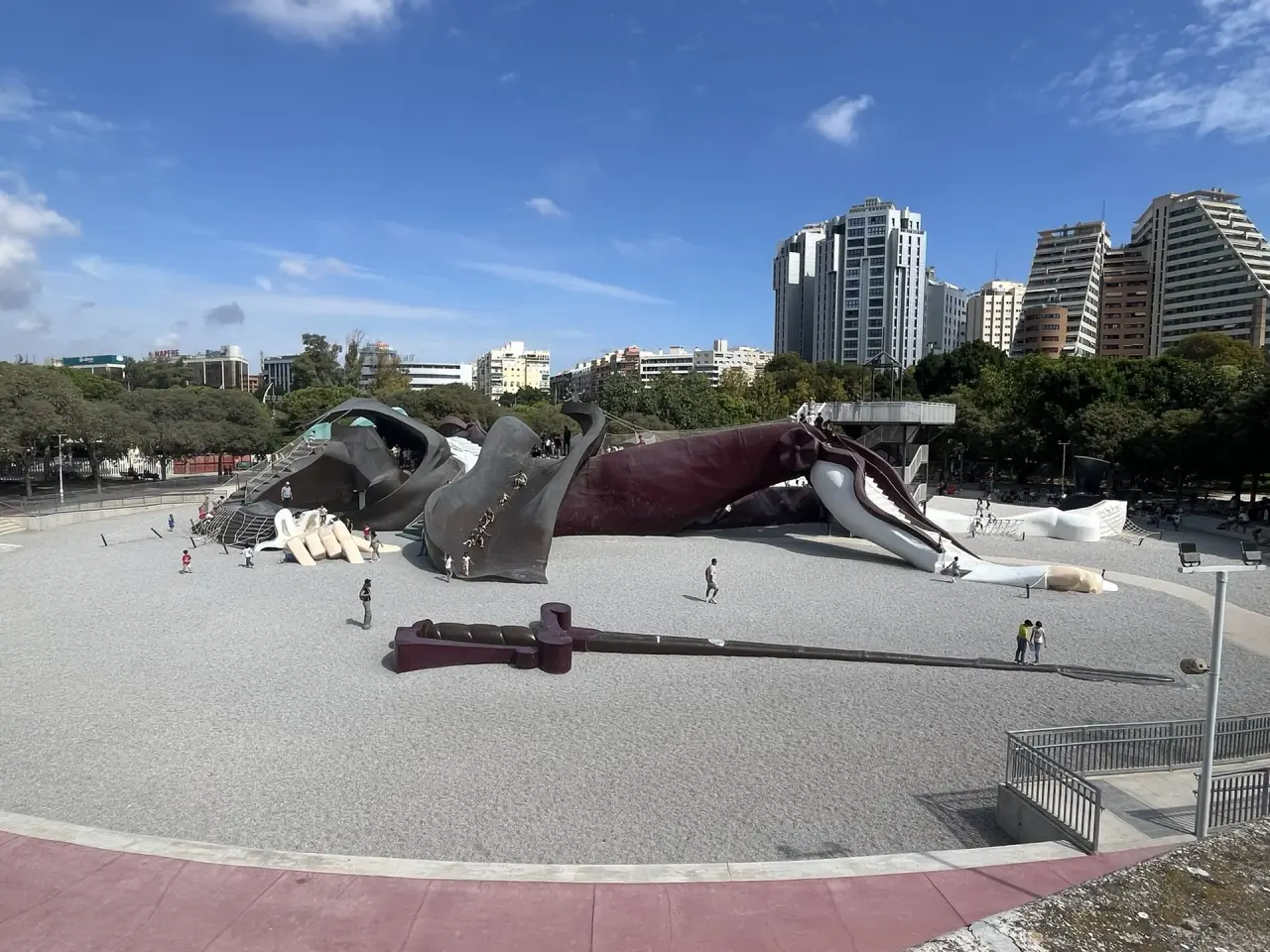

Valencia’s municipal information places Gulliver Park within section XII of the Turia Garden and identifies access in relation to the Ángel Custodio and Reino bridges. A guide to a selected nearby stretch could use that official information to establish its geographic scope. It should not automatically label the entire Turia corridor as the planned walk.
A useful working brief would name the map as a selected Turia Garden walk around Gulliver, identify the verified route separately from the play area and mark the bridge names needed for orientation. If an optional continuation is proposed, its distinct line and legend label should make that choice visible. Any claimed distance or access characteristic needs its own evidence before being added.
The design decision is concrete: the play area is an article stop, a bridge is an orientation feature and a separate journey by public transport is a transfer. The legend should preserve those roles. If every item receives the same marker, the reader cannot tell the planned experience from the background geography.
Use official maps according to their purpose
Official maps are valuable references, but read their legends and scope before reusing information. A transport diagram, administrative boundary map and visitor walking map answer different questions. A straight line on a schematic diagram may establish a connection without representing a walkable street or a measured distance.
The National Park Service publishes map resources and symbol systems that demonstrate how categories can be kept consistent. Its wayside guidance also emphasises scale and the importance of the sign’s position. For a travel publisher, these are useful planning references rather than permission to copy a map without checking its terms or assume that one set of symbols fits every destination.
Retain the source for important mapped features in the working record. If the article draws its own simplified route, identify what was verified and what remains an editorial suggestion. The final map should not imply the authority of an official site map when it is the publisher’s own planning illustration.
Keep the legend close and readable
Place the legend where readers can consult it while interpreting the map. Avoid forcing a phone user to move repeatedly between distant sections to decode a route line. Use adequate text size and sufficient space between entries. The map’s attractive overview should not come at the cost of a legend that becomes tiny in the real layout.
Show the same symbol and line treatment in the legend that the map uses. A sample dash should resemble the delivered dash pattern, and the stop marker should retain its number or shape. If a responsive layout changes the map’s appearance, check that the legend still explains the visible version rather than a larger design file.
Remove unused entries after editing. A legend for a deleted ferry transfer or an optional stop no longer shown creates unnecessary uncertainty. Likewise, add an explanation for every category that remains consequential. The relationship between map and legend should be checked as a pair whenever the route changes.
Provide the essential information in text
A map should support the itinerary rather than hold the only version of an essential direction. Give readers a clear text description of the route’s scope, start and choices. If the map conveys more complex relationships, provide a suitable longer explanation alongside its short alternative description.
Keep the text and map aligned. If the article says the optional section can be skipped, the legend should identify it as optional. If an arrival point differs from the first sightseeing stop, explain both. A reader using the text should be able to understand the planning decision even without seeing the map’s colours or shapes.
Do not claim that a simple symbol establishes universal access or current availability. A facility or route note needs verified evidence and useful qualification. The legend explains what the symbol means; it does not prove that the mapped feature is open or suitable for every visitor on the travel date.
Test a decision, then save the record
Ask someone unfamiliar with the design to identify the main route, an optional stop and the relevant starting point using the delivered map. Watch where they hesitate and ask what a confusing symbol means to them. This reveals practical ambiguity more effectively than asking whether they like the colours.
Repeat the task at the phone size and in a low-colour or monochrome view. Check the source, feature labels, route and legend against the acceptance sentence written at the start. Fix the specific failures, then save the accepted map, source record and check result together for future maintenance.
The finished legend should let readers make the intended travel choice with little effort. A small consistent vocabulary of lines, shapes and labels helps the map explain the visit, while verified geography and accompanying text give that visual vocabulary a dependable meaning.
